12 Create a map layout that incorporates multiple data frames

We will make a visually efficient map to compare the four contiguous US layers. In other words, we will put four layers, which should be the same size, into one map layout and add a graticule to depict coordinate systems.

  1. Open a map layout by Insert > New Layout and choose Letter 8.5’’ X 11’’

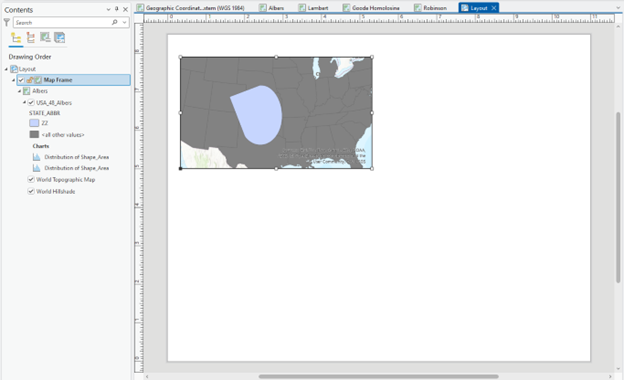

  2. Click Map Frame, choose “Albers,” and drag it to the first quadrant: (Figure)

    Stop and check: Consider using “rulers” to divide the map layout into four quadrants.

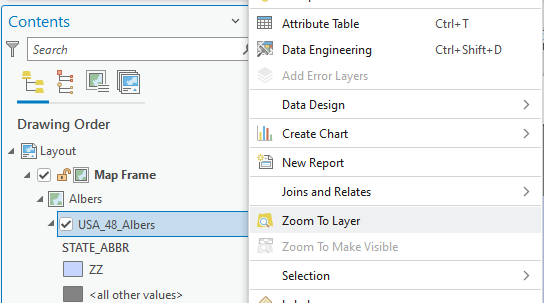

  3. You might have a “zoomed-out” (or “zoomed-in”) figure on your map, like the above. To show it to its full extent, right-click USA_Albers and choose Zoom To Layer: ((Figure)

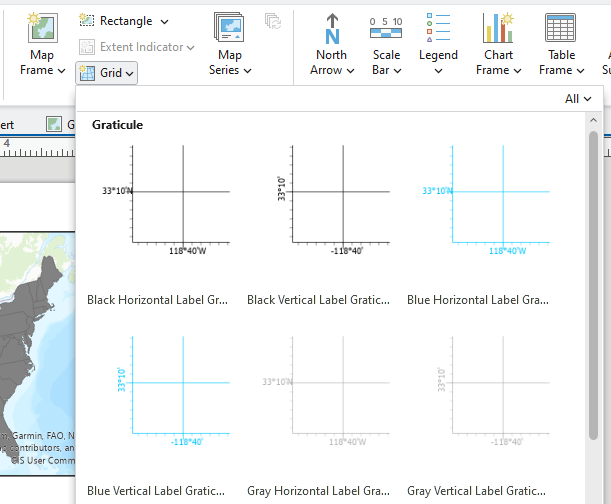

  4. You will add a graticule to the USA_Albers map. Click the USA_Albers map frame in your Layout (to activate the Grid), click the drop-down in Grid, and choose Black Horizontal Label Graticule (or any other choice of yours): (Figure)
  5. Add three projected layers to fill the rest of the quadrants and put the Graticule in it.

    Stop and Think: What is the role of a graticule in a map? What is the benefit of a graticule in your map layout?

  6. Put titles, i.e., Albers Equal Area Conic, Lambert Conformal Conic, and Goode Homolosine, Robins, on top of each map frame.
  7. Add a scale bar and a North arrow.
  8. Export the map to a figure format, such as TIFF, JPEG, or BMP.

    Final Deliverable

    Map (2 pts.): The final map requirements are:

    • Show the four contiguous US layers as the same size in ONE map layout.
    • Include the title of each layer, graticule, scale bar, and North arrow.

    Question (2 pts.): Compare and contrast the conterminous US maps by 1) the shape of each figure and 2) the calculated area from Table 1. (Note: Please focus on which map projections show similar visualizations and area measurements and why.)
